airflow.md

• Airflow apache

• how to

• podcast

• tutorial

• components

Key concepts

• DAG a graph object representing your data pipeline
• Operator Describe a single task in your data pipeline
• Task An instance of an operator
• Task Instance Represents a specific run of a task = DAG + Task + Point of time
• Workflow Combination of all above

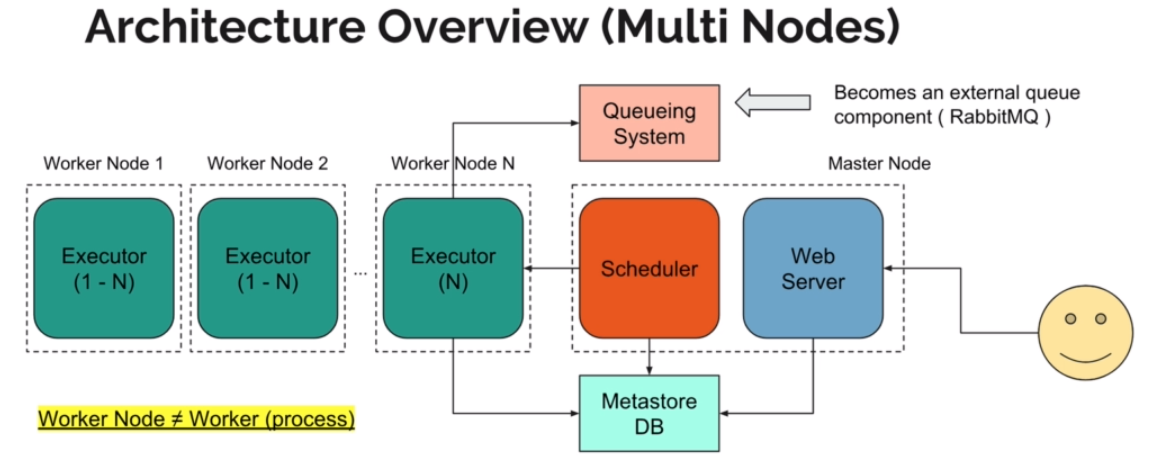

Architecture overview

[Airflow install on python virtualenv]

# create python virtual env
python3 -m venv airflow-env
source airflow-env/bin/activate

# create folder
mkdir airflow
export AIRFLOW_HOME=`pwd`/airflow

# install workflow
pip install apache-airflow

# init workflow
airflow initdb
airflow scheduler &
airflow webserver -p 8080 &
echo "localhost:8080"

# sudo apt install sqllite3
# sqllite3 $AIRFLOW_HOME/airflow.db

Airflow virtual environment

python env create -f environment.yml
source activate airflow-tutorial

Airflow Virtual machine

credentials

ssh -p 2200 airflow@localhost
# passw: airflow

activate workspace

source .sandbox/bin/activate

commands

check workspace

airflow --help

DAG example

should be placed into "dag" folder ( default: %AIRFLOW%/dag )

• minimal

from airflow import DAG

with DAG('airflow_tutorial_v01',
         default_args=default_args,
         schedule_interval='0 * * * *',
         ) as dag:
    print(dag)

• simple

from airflow import DAG
from datetime import date, timedelta, datetime

arguments = {
    'owner': 'me',
    'start_date': dt.datetime(2019, 4, 13),
    'retries': 1,
    'retry_delay': dt.timedelta(minutes=5),
}

with DAG('airflow_tutorial_v01',
         default_args=default_args,
         schedule_interval='0 * * * *',
         default_args=arguments
         ) as dag:
    print(dag)

operator types ( BaseOperator )

• action
• transfer ( data )
• sensor ( waiting for some event )
  • long running task
  • BaseSensorOperator
  • poke method is responsible for waiting

REST endpoints

trigger DAG

import urllib2
import json

AIRFLOW_URL="https://airflow.local/api/experimental/dags/name_of_my_dag/dag_runs"
payload_dict = {"conf": {"dag_param_1": "test value"}}

req = urllib2.Request(AIRFLOW_URL, data=json.dumps(payload_dict))
req.add_header('Content-Type', 'application/json')
req.add_header('Cache-Control', 'no-cache')
req.get_method = lambda: "POST"
f = urllib2.urlopen(req)
print(f.read())
